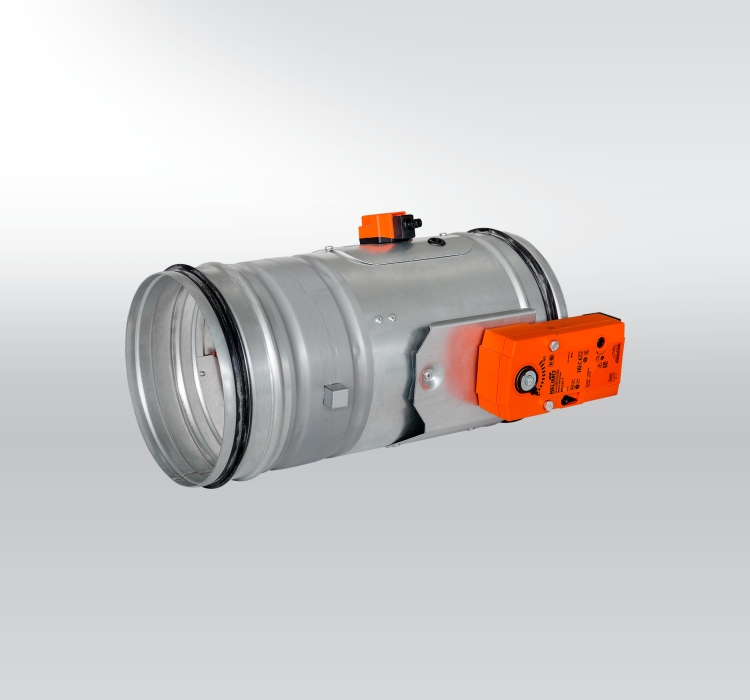

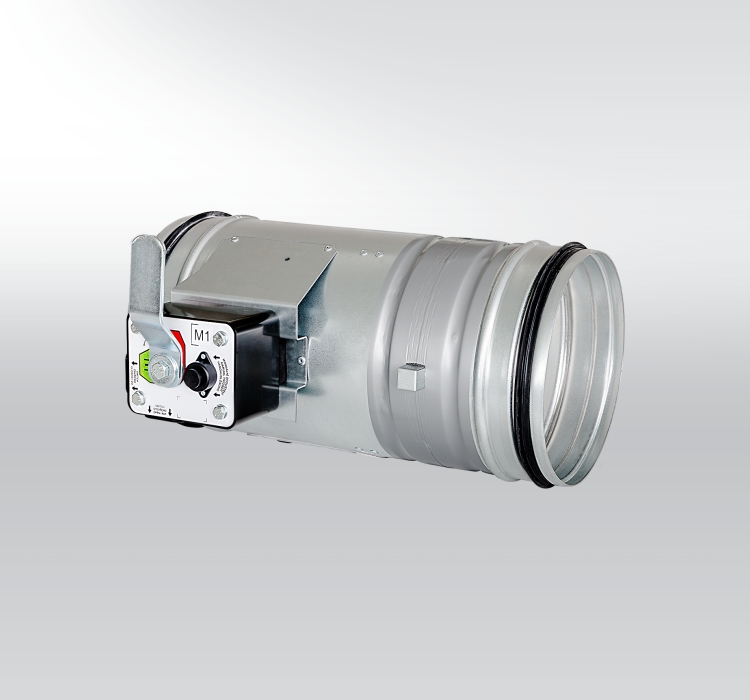

FDMR 60Fire damper

FDMR 60 – The Damper in the HVAC equipment duct that prevents the spread of fire and combustion products from one fire segment to another by shutting off the airflow at the fixture points.



Characteristics

  • Dampers from ø 100 to 400 mm
  • CE certified acc. to EN 15650
  • Tested in accordance with EN 1366-2
  • Classified acc. to EN 13501-3+A1
  • Fire resistance up to EIS 60
  • External Casing leakage class C
    Internal leakage class 3 acc. to EN 1751
  • Corrosion resistant acc. to EN 15650
  • Cycling test in class C 10 000 acc. to EN 15650
  • Damper actuating mechanical or electrical
  • Maximum air speed through opened damper of 12 m/s
  • Maximum pressure difference: 1200 Pa
