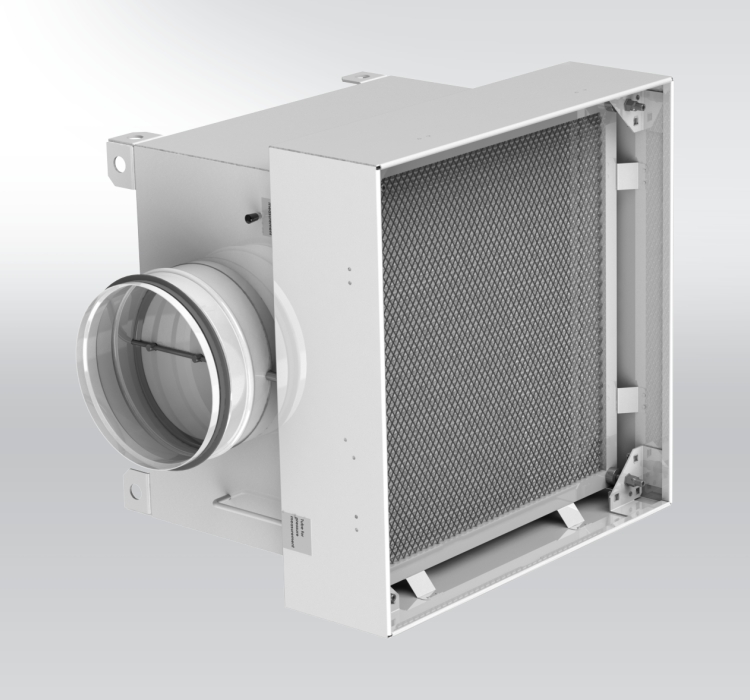

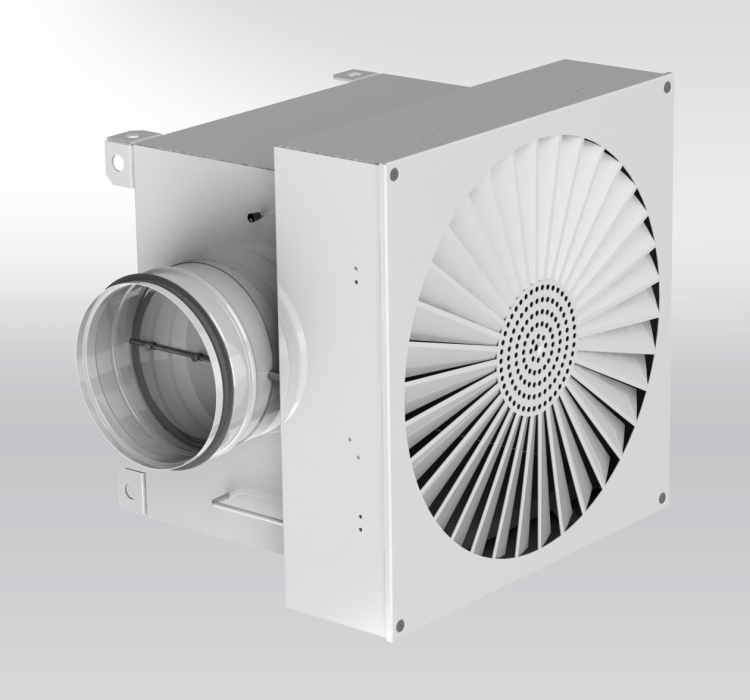

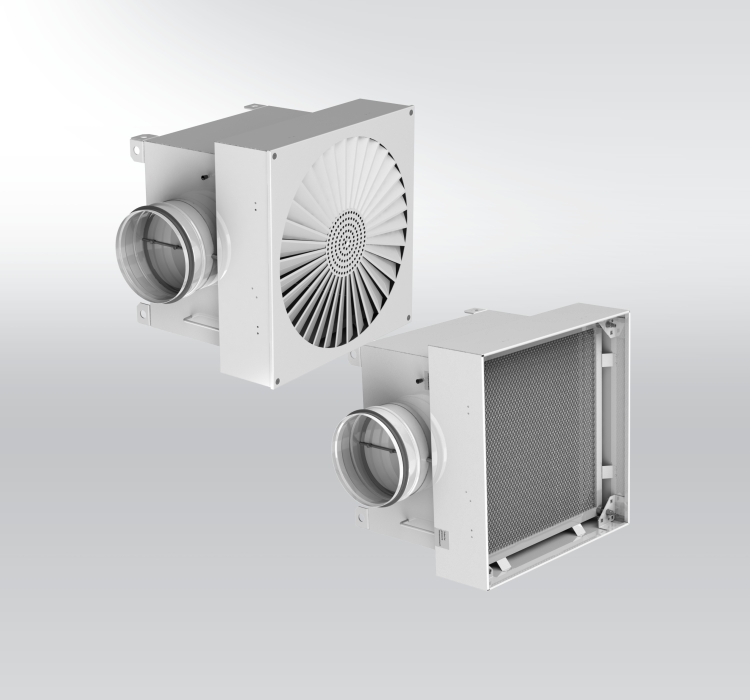

HEPAbox is intended for use as an air diffuser of ventilation systems for “clean rooms”, typically present in hospitals, laboratories, pharmaceutical production plants, clean industrial plants etc.
Characteristics
- square front plate, sizes 400, 500, 600, 625 mm
- frame filters with frame depth 34… 80 mm
- volume flow with HEPA filter as a standard, up to
1440 m3/h (400 l/s)
- designed for filters with filtration class up to H14
- standard supplied filter class H14 (HEPA filter) brand AAF
- chamber pressure (final pressure drop) max. 500 Pa

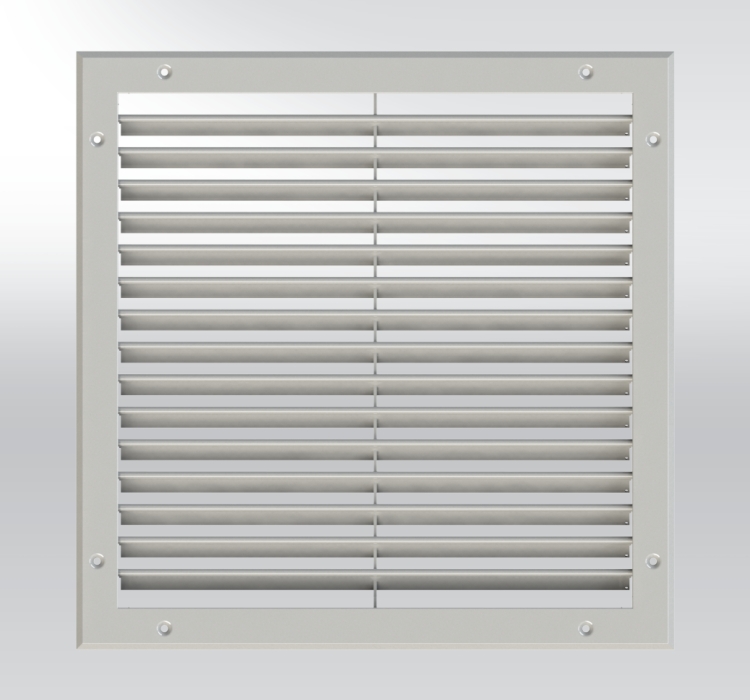

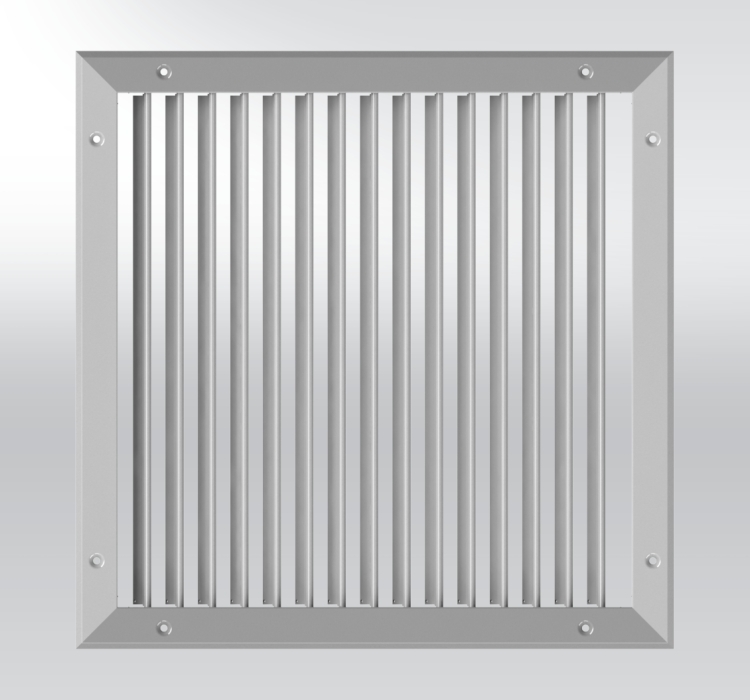

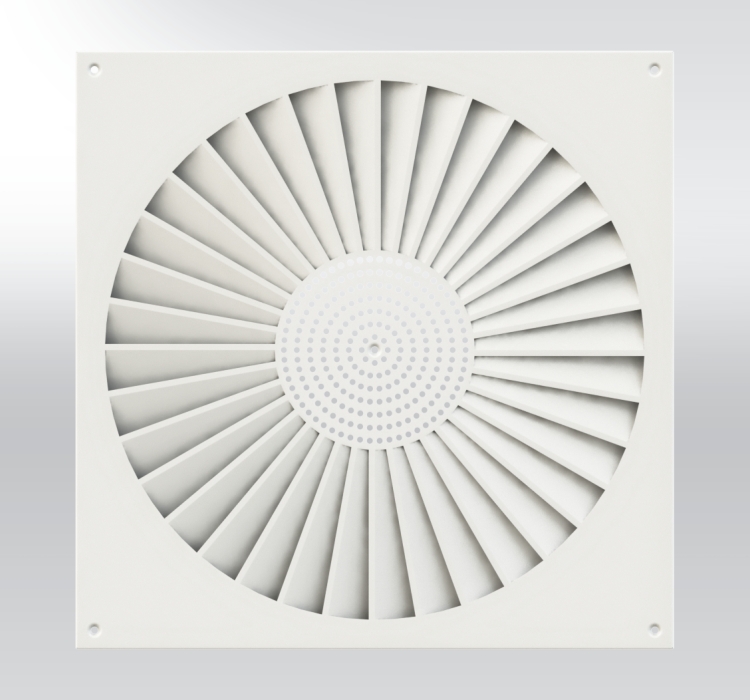

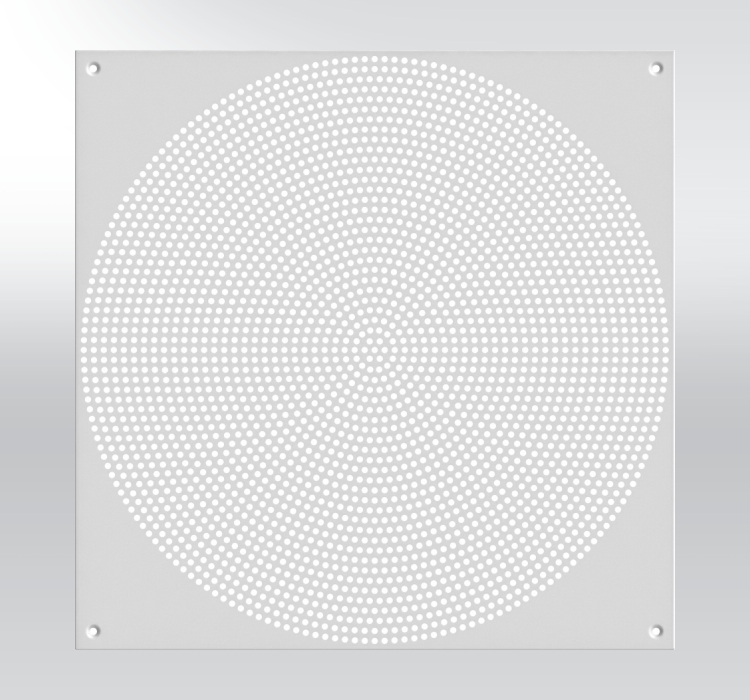

- 6 types of air-diffusers / air-grilles
- shut-off damper of tightness class sheet 4 according to EN 1751
- HEPAbox material and diffuser / grid material of reaction to fire class A1
- all-welded stainless steel housing for high rigidity, tightness and reliability
- the surface of the HEPAbox is protected by a special powder paint
- hygienic design in accordance with the most advanced standards for the HVAC system in hospitals
- top performance and quality HEPA filters of the AAF brand with very low pressure loss
- low noise emissions
- environmentally friendly design
- can be installed in the ceiling or freely in the room
- easy installation, commissioning, diagnostics and filter replacement
- optional shut-off damper, which is easy to operate from inside the box
- possible manual (periodic) and automatic (continuous) detection of filter cleanliness
Design in accordance with the following general and hygienic standards
- VDI 6022, sheet 1 (01/2018)
- VDI 3803, sheet 1 (05/2020)
- ÖNORM H 6021 (08/2016)
- SWKI VA105-01 (08/2015)
Design in accordance with the following standards for hospitals, medical laboratories, etc.
- DIN 1946, part 4 (09/2018)
- ÖNORM H 6020 (06/2019)
- SWKI VA104-01 (01/2019)
Conformity assessed by Hygiene-Institut des Ruhrgebiets, Germany, Test report number W-355575-22-Zd, Certificate issued on 28.04.2022
Defectoscopy tested according to EN ISO 14644-3: 2019 by an accredited laboratory No. 1313.
