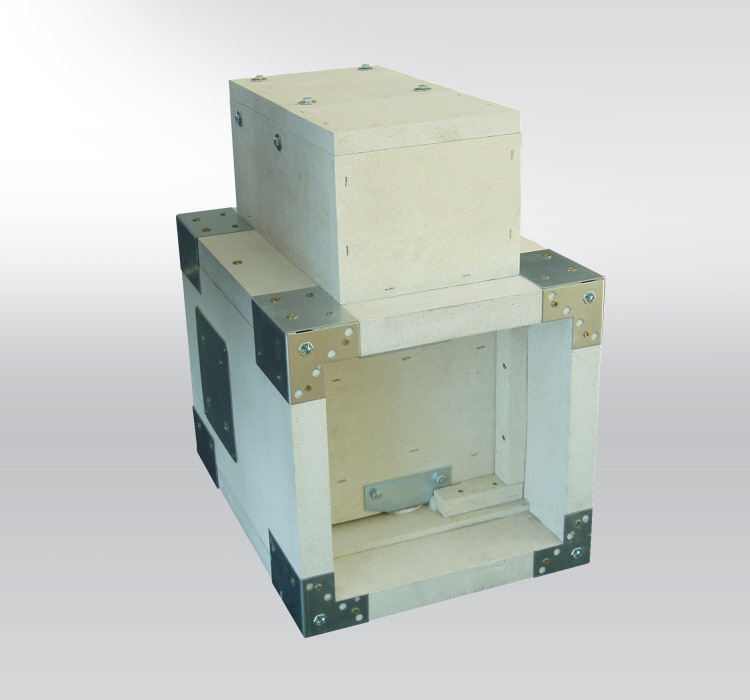

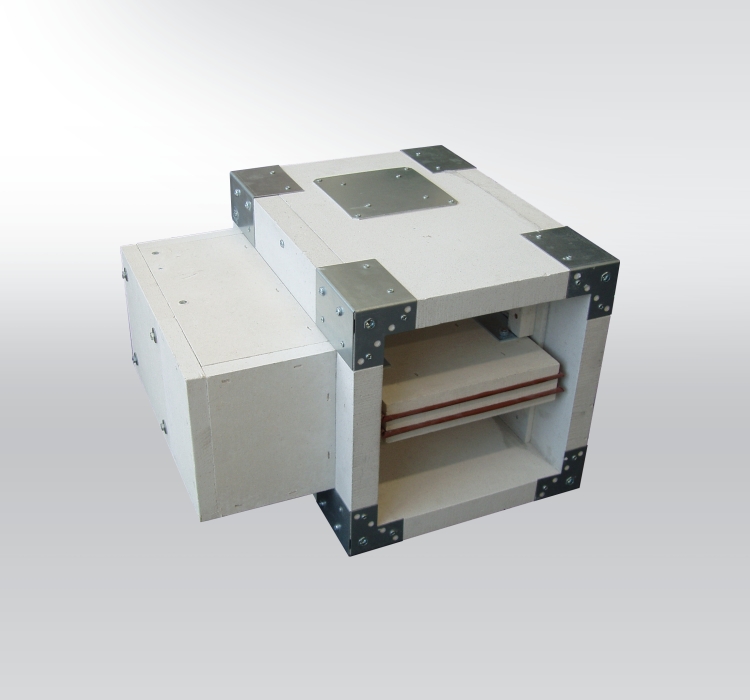

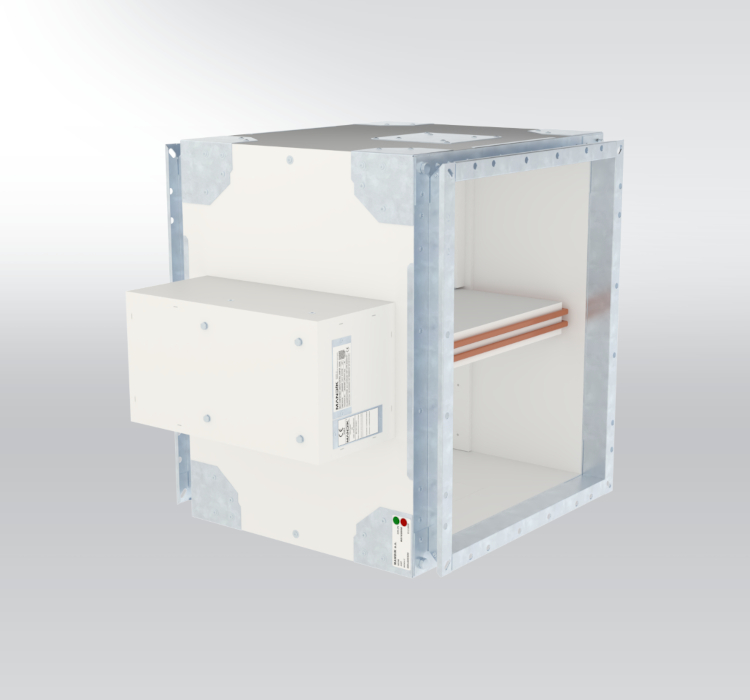

SEDM – Multi compartment smoke control damper allows usage in smoke control ducting systems. Suitable for heat and smoke extraction from several comparements at the same time.

Characteristics

• Square dampers from 180 × 180 mm to 1600 x 1000 mm
• CE certified acc. to EN 12101-8
• Tested in accordance with EN 1366-10
• Classified acc. to EN 13501-4
• Fire resistance up to EI 120 S, activation AA/MA, HOT 400/30
• Cycling test in class C_mod acc. to EN 12101-8

• External Casing leakage class C,
  Internal leakage class 2 acc. to EN 1751
• Damper actuating by electrical actuator
• Max. air speed in the system of 15 m/s, allowed pressure up to 500Pa, or underpressure up to -1500 Pa
