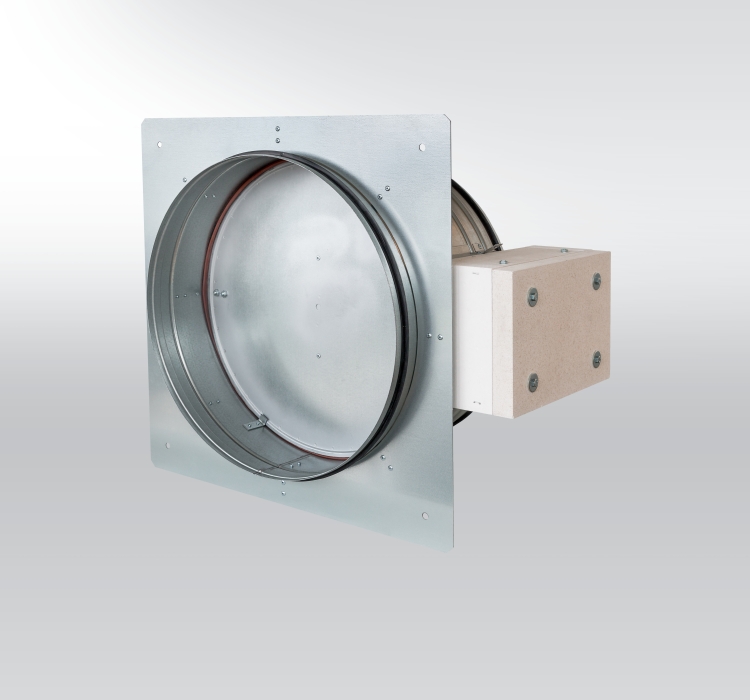

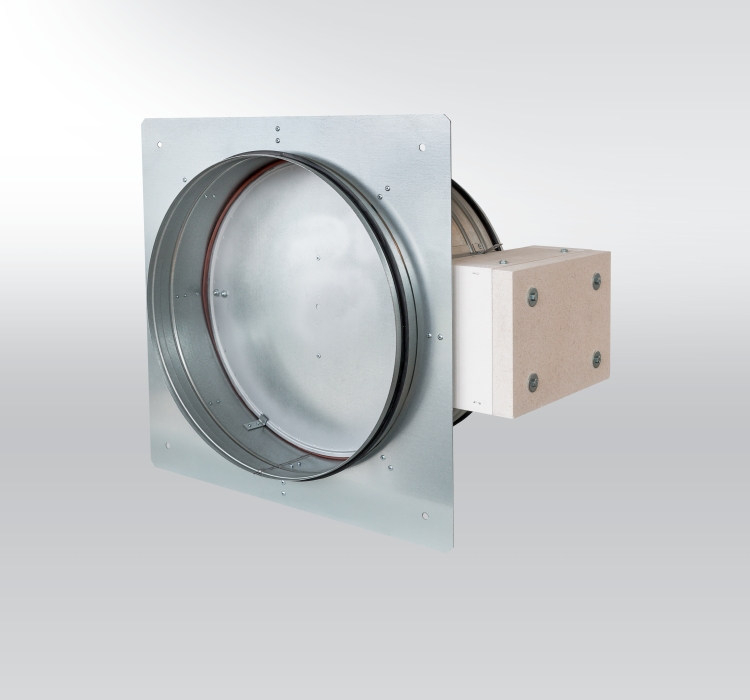

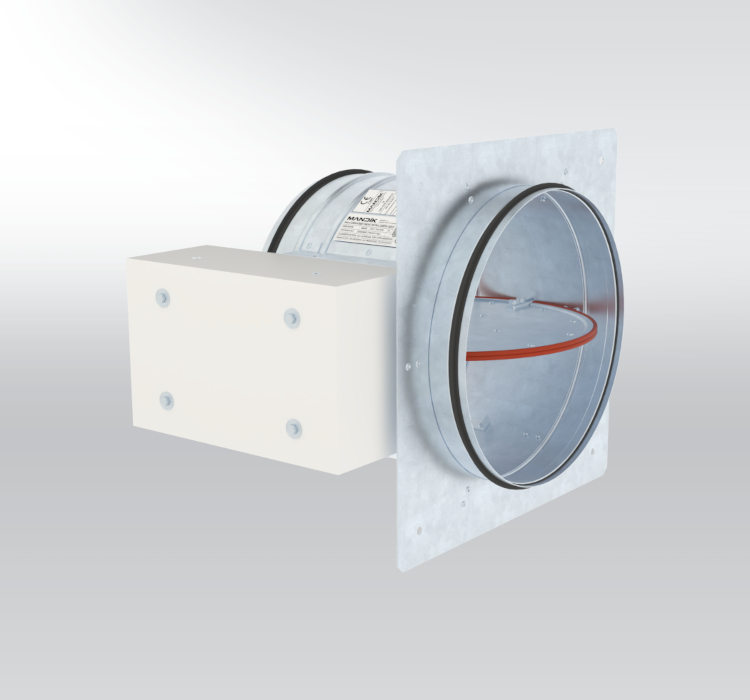

SEDS-R – Single comparement smoke control damper allows usage in smoke control ducting systems. Suitable for heat and smoke extraction from one comparement.
Characteristics
- Round dampers from ø 100 to 630 mm
- CE certified acc. to EN 12101-8
- Tested in accordance with EN 1366-10
- Classified acc. to EN 13501-4
- ES 120/600, activation AA/MA
- External Casing leakage class B, Over blade min. class 4, diameter 100 min. class 3
- Cycling test in class Cmod acc. to EN 12101-8
- Damper actuating by electrical actuator
- Max. air speed in the system of 15 m/s, allowed pressure up to 500 Pa, or underpressure up to - 1500 Pa
